Model:
|

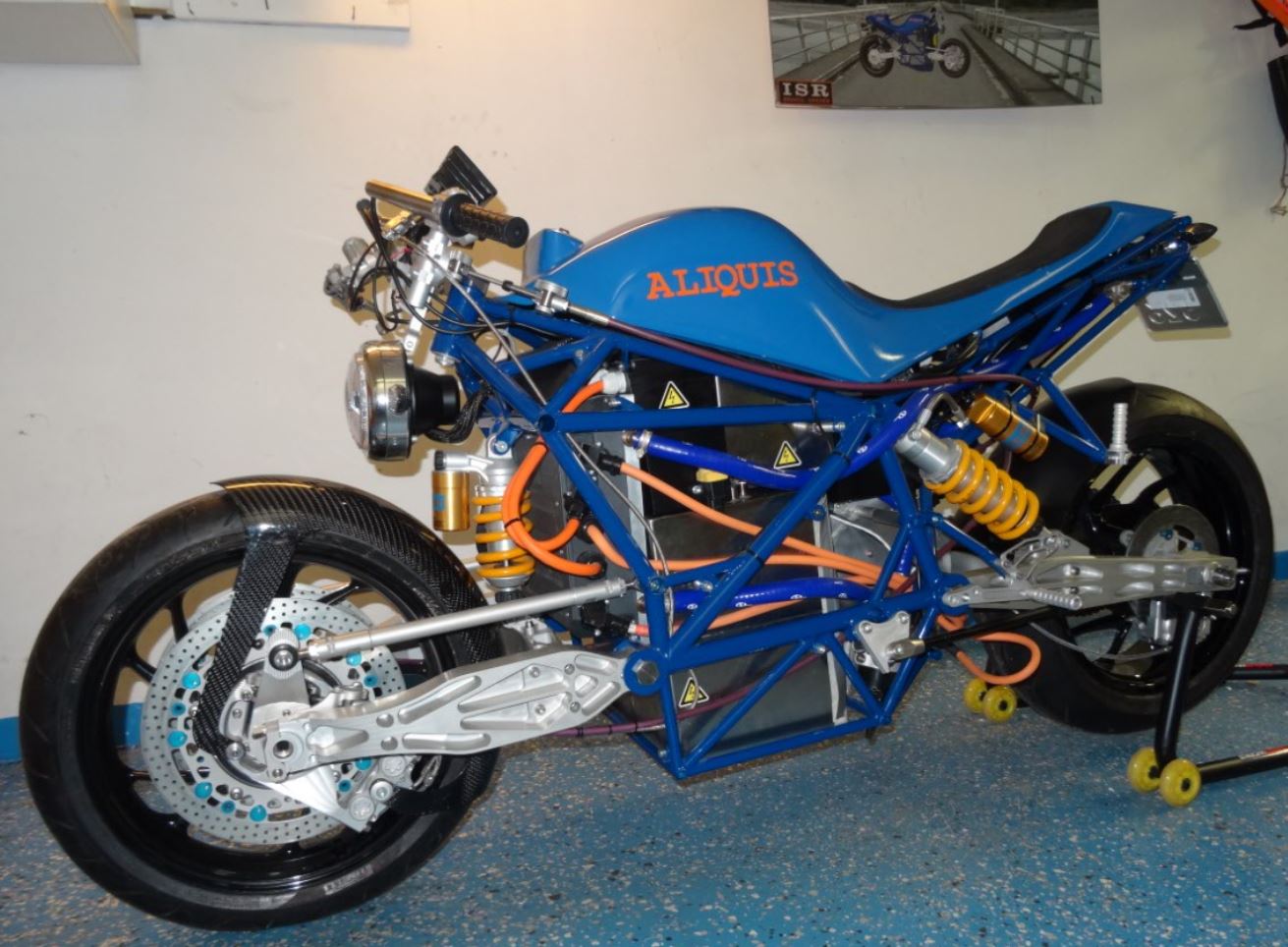

Aliquis A1E, Electric Superbike and Café Racer (Electric Motorcycle)
|
|
A1E Motor, Controller and Final drive
|
Motor Type:
|
YASA-400, Advanced Axial Flux Motor
|
Motor Controller:
|
Sevcon Gen 4 Size 8
|
Peak Motor Power:
|
93Kw @ 4500 rpm (126 bhp), Aliquis A1E power curve [graph]
|
Peak Continuous Current:
|
100 Amps
|
Max Motor Torque:
|
328Nm (242 ft lb)
|
Final Drive:
|
Direct Chain Drive, 530 X-ring chain, 2.6 :1 (16T front /42T)
|
Emission:
|
Zero
|
|
Battery Pack (High Voltage)
|
Battery Type:
|
110 pcs A123 Li-Ion batteries, 19.5 Ah
|
Battery Pack Capacity:
|
7.1 KWh (nominal), 7.7 kWh (max)
|
Battery Pack Voltage
|
363V (nominal)
|
Battery Life:
|
1,500 cycles
|
Recharge Time:
|
Approx. 5hrs
|
|
Battery Pack (Low Voltage)
|
Battery Type:
|
8 pcs A123 Li-Ion batteries, 5 Ah
|
Battery Pack Capacity:
|
0.06 kWh (nominal)
|
Battery Pack Voltage
|
13.2V (nominal)
|
Battery Life:
|
1,500 cycles
|
Recharge Time:
|
Approx. 30 min
|
|
A1E Performance
|
A1E Performance:
|
250 kph/156 mph (or up to 300 km/h depending on final drive ratio).
|
Driving Range:
|
Combined 95Km (estimated, 50% city and 50% highway)
|
Regenerative Braking:
|
Under deceleration, energy is returned back in to the battery to extend driving range.
|
Battery Life:
|
1,500 cycles
|
Data Collection:
|
CAN interface, Sevcon ClearView and Gen 4 Size 8
|
|
A1E Dimensions
|
Weight:
|
Approx. 200kg
|
Wheelbase:
|
1460 mm
|
Colors:
|
Blue
|
|
A1E Key Components
|
Frame:
|
Steel spaceframe, chrome moly TIG welded, fabricated by ISR in Sweden
|
Bodywork:
|
Fiberglass and carbon fiber
|
Front Swingarm:
|
Aluminum, Fabricated by ISR in Sweden
|
Hub Centre Steering:
|
Aluminum, Fabricated by ISR in Sweden
|
Rear Swingarm:
|
Aluminum, Fabricated by ISR in Sweden
|
Suspension -Front:
|
Öhlins, adjustable single shock
|
Suspension -Rear:
|
Öhlins, adjustable single shock
|
Brakes -Front:
|
ISR dual disk with two ISR six piston hydralic brake calipers
|
Brakes -Rear:
|
ISR single disk with one ISR four piston hydralic brake calipers
|
Wheels (Front/Rear):
|
17"x3.5" BMW / 17"x5.5" BMW
|
Tires (Front):
|
120/70-17 Pirelli Diablo Rosso Corsa ZR17 TL 58(W) M/C
|
Tires (Rear):
|
180/55-17 Pirelli Diablo Rosso Corsa ZR17 TL 73(W) M/C
|
Headlights:
|
Xenon light, Hi and Lo beam, with angel and demon eye
|
Lights:
|
LED tail, brake and indicator lights
|
Instrumentation:
|
Sevcon ClearView LCD display; speed, tach, odometer, drive position, energy
consumption, battery status, estimated range and system status
|
|
A1E Price
|
Retail Price:
|
Please contact anders@aliquis.se for details
|
